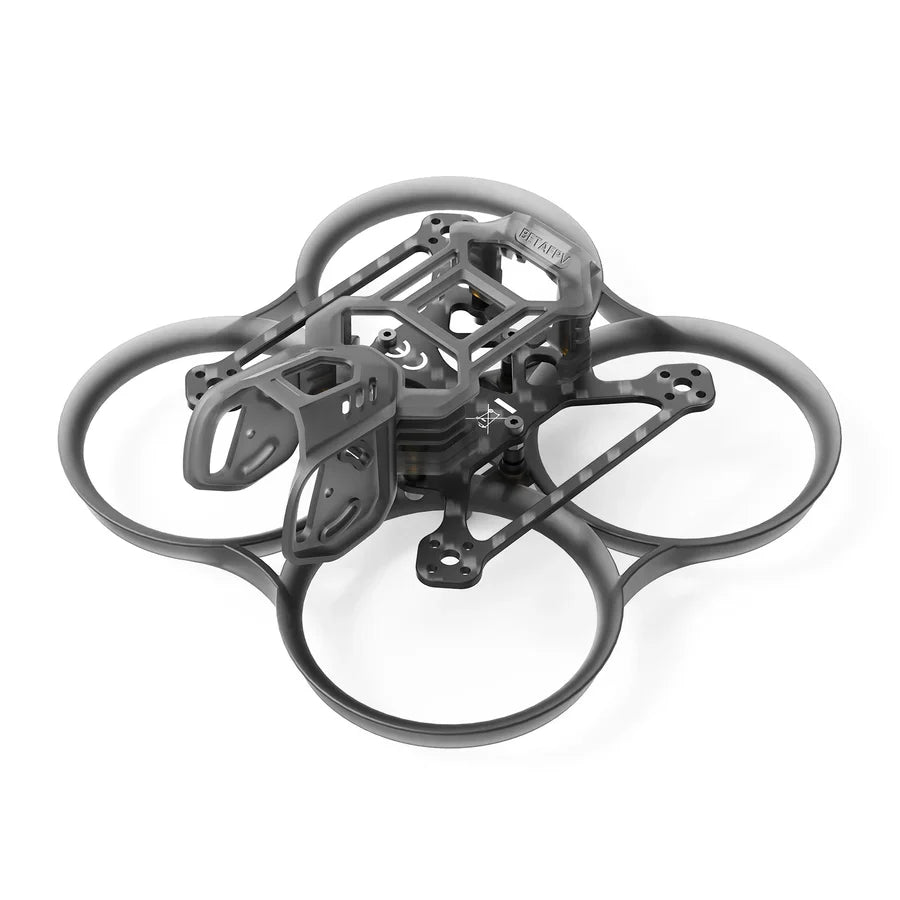

BetaFPV Pavo20 Pro Brushless Whoop Frame (For DJI O4)

The Pavo20 Pro Brushless Whoop Frame is engineered for the 2.2″ Pavo20 Pro cinewhoop and now supports DJI O3 Air Unit, Caddx Vista, RunCam Link, and the latest DJI O4 Air Unit Pro when used with the O4 Pro Bracket for improved stability and flexibility. Featuring a 93.7mm wheelbase and built from reinforced PA12 thickened whoop ducts, this frame offers enhanced durability and aerodynamic performance, boosting thrust by 8-11%. Optimized for a powerful 3S propulsion setup, it delivers exceptional power for both freestyle and cinematic flying. Dual camera mounts accommodate DJI O3 and O4 Pro wide-angle lenses, while the classic rubber damper design ensures smooth, high-quality HD video capture.

Package Includes:

1x BetaFPV Pavo20 Pro Frame Kit For DJI O4

Features:

• Ultra-Durable PA12 Thickened Whoop Duct: Crash-proof construction with a reinforced cross-section design for superior strength and blast.
• Aerodynamic Thrust Boost: Engineered airflow dynamics deliver an 8–11% thrust increase compared to ductless designs. Paired with LAVA 1104 Motors for explosive power, achieving up to 6'40'' flight time.

• Upgraded Camera & Lens Protection: Dual camera fixing holes for DJI O4 Pro/O3 wide-angle shooting flexibility. Reinforced cam side panel guards against impacts and angle deviation, even after aggressive flights.
• New O4 Air Unit Pro Bracket: It retains all O3 Bracket features while adding dual fixing holes for optimized camera rotation (0-40° tilt) and 30° angled antenna mounts for stronger signal in a reinforced design.
• Hassle-Free HD VTX Mounting System: Integrated injection-molded bracket for hassle-free setup with just 8 screws—no tedious screw adjustments needed. Contoured antenna holder ensures secure, clean cable routing and maximum signal integrity.

• Pavo Series Rubber Damper Design: Proprietary vibration-damping system guarantees buttery-smooth, jitter-free HD footage in all flight modes.

• Versatile Battery Mounting System: Open-ended strap slot + side-limitation slots for a rock-solid battery grip. Accommodates a wide range of battery sizes while preventing shifts during hard maneuvers.

Specifications:

Item: Pavo20 Pro Brushless Whoop Frame

Wheelbase: 93.7mm

Material: PA12/PP

Top Plate Thickness: 2mm

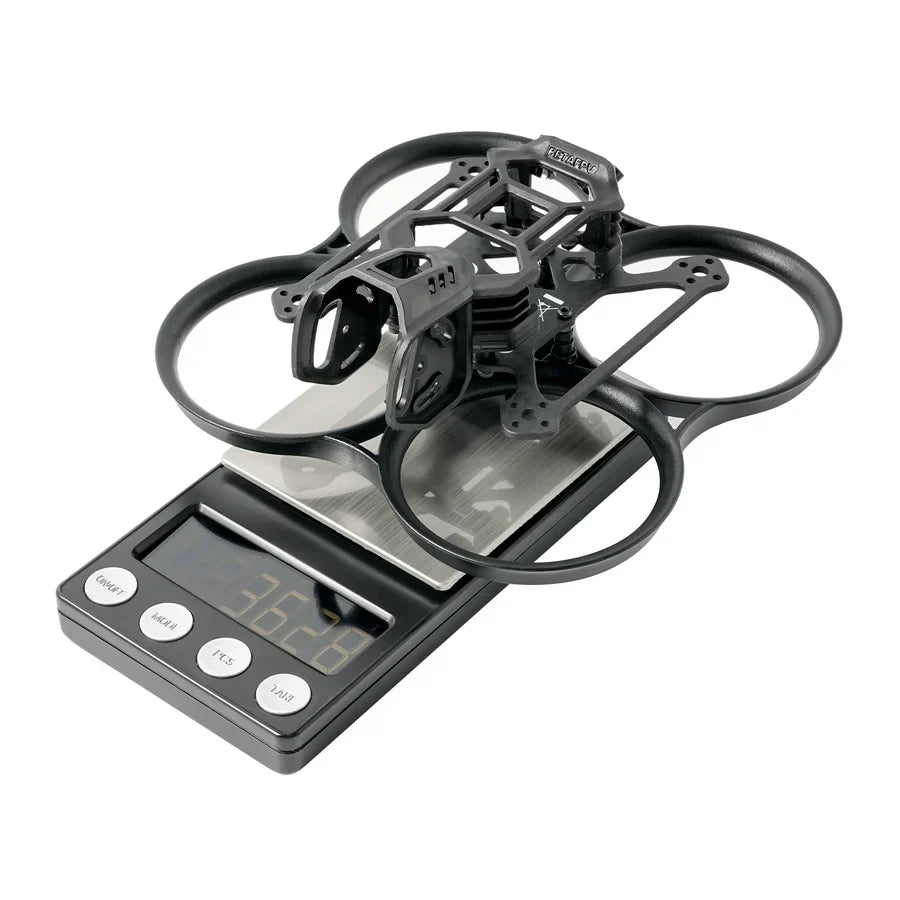

Frame Weight: 33.3g (With O3 Air Unit Bracket), 35.7g (With O4 Air Unit Pro Bracket)

Whoop Duct Weight: 17.8g

Bracket Weight: 4.6g (O3 Air Unit Bracket), 7.2g (O4 Air Unit Pro Bracket)

Color: Black/Transparent Grey/Blue

Camera Mounting Spacing: 19mm/20mm

FC Mounting Hole Size: 26×26mm

Motor Mounting Hole Size: 4-M2-φ9mm

Battery Slot Width: 20mm

Camera Filter: Supported
