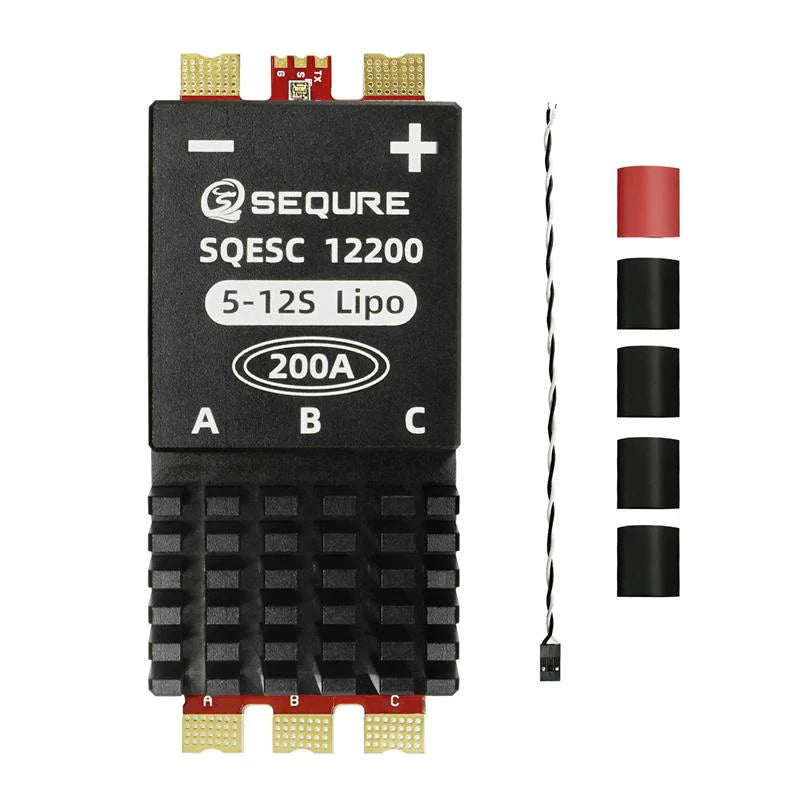

SEQURE SQESC 12200 Brushless ESC 5-12S Power Supply 200A AM_32
SEQURE SQESC 12200 Brushless ESC 5-12S Power Supply 200A AM_32 est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
Impossible de charger la disponibilité pour le Service de retrait
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.
SEQURE SQESC 12200 Brushless ESC 5-12S Power Supply 200A AM_32
Description
Description
The SEQURE SQESC 12200 Brushless ESC features a 32-bit STM32G071 processor running at 64MHz, supporting motor PWM frequencies up to 128KHz. Equipped with high-power MOSFETs and a CNC-machined metal heatsink, it ensures efficient heat dissipation for stable operation under heavy loads. It offers versatile motor control modes including uni- and bi-directional, as well as braking. Comprehensive protections cover low voltage, temperature, locked rotor, and current anomalies. The ESC auto-detects throttle signals on startup and supports Dshot, PWM, Oneshot, and Multishot protocols. Configuration is streamlined via a visual programming tool for motor timing, throttle calibration, and telemetry. Customizable onboard RGB LEDs enhance status indication. Ideal for model aircraft, drones, RC boats, and cars.
Package Includes:
1x SQESC 12200 Brushless ESC 5-12S (AM_32)
Specifications:
| Model | SQESC 12200 |
| Processor | STM32G071 |
| Input voltage | DC 18V-50.4V（5-12S Lipo） |
|
Continuous current (good heat dissipation) |
200A |
|
Maximum current (good heat dissipation) |
250A |
| Support firmware | BLHeli_32，AM32 |
| BEC | NO |
| Signal protocol | Dshot (All),PWM,Oneshot,Multishot,etc. |
| Programming parameter adjustment | Support |
| Throttle calibration | Support |
| Timing angle setting | Support |
| Current detection | Support |
| Telemetry signal | Support |
| Motor steering settings | Support |
| RGB LED color lights | Support |
| Power cable(if any) | 8AWG |
| Application scenarios |
Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, and rock crawlers. |
