Emax  |  SKU: EMX64-C1

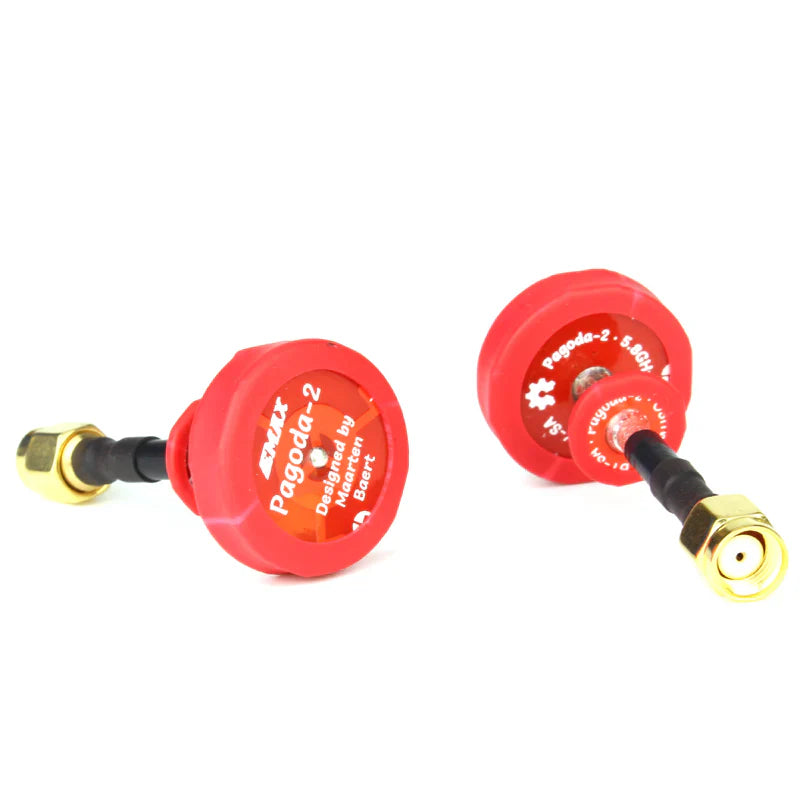

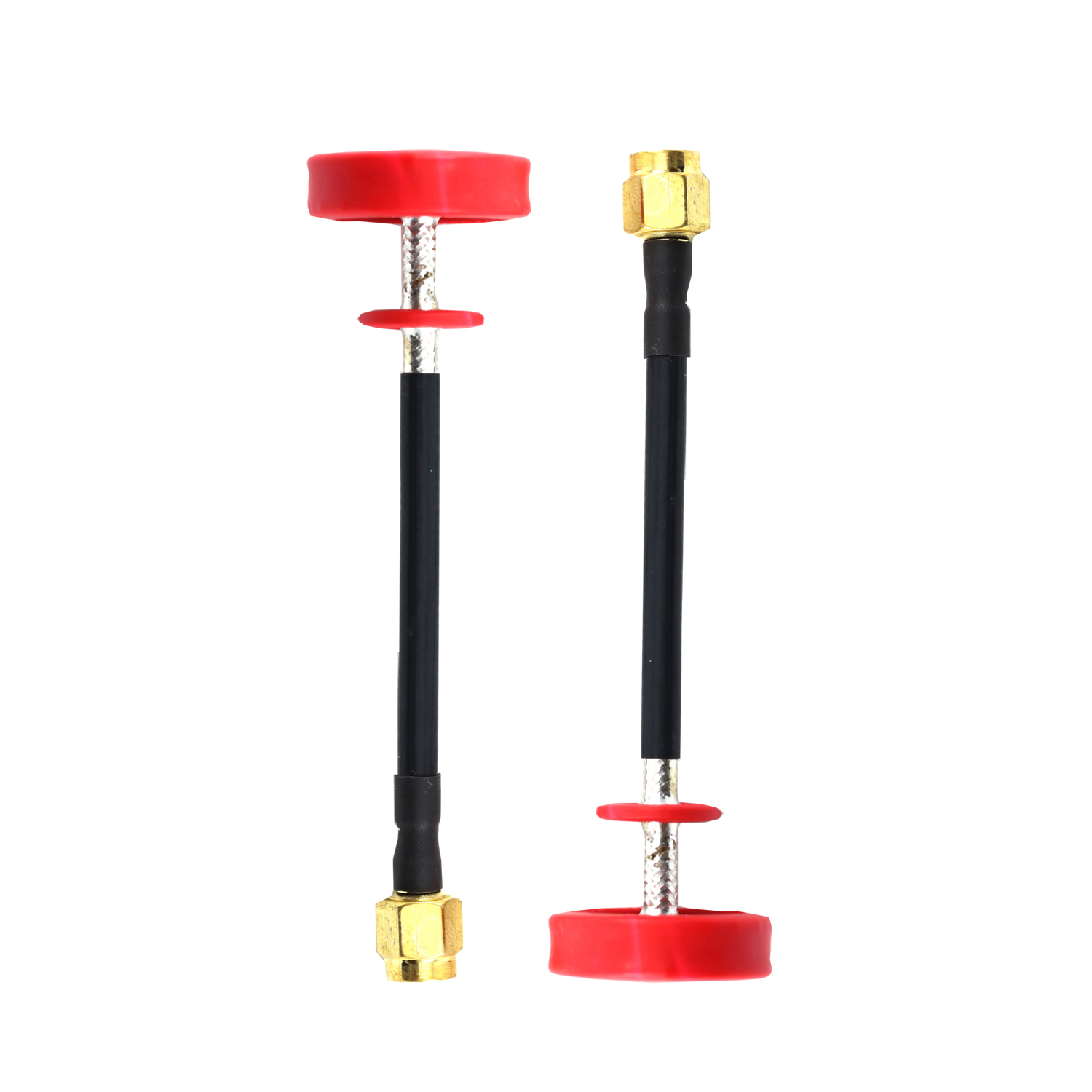

EMAX Pagoda 2 Antenna 5.8G 80mm RHCP Omnidirectional Antenna

$13.99
Shipping calculated at checkout.

Shipping & Fufillment

All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.

Description

Specifications

  • Center frequency: 5.8 GHz

  • Bandwidth: 500 MHz (5.55 – 6.05 GHz)

  • Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)

  • Axial ratio: < 1.3

  • Radiation efficiency: 95%

Originally, the radiation efficiency was listed as 92%; this was a mistake. These values are based on simulation; actual measurements are below (they are very similar). The center frequency may shift a bit between batches as a result of variations in the dielectric constant of FR4. Also, not all FR4 brands have the same dielectric constant. Frequency shifts up to 100 MHz are normal.

Package Includes:

2x Antennas

Radiation pattern



3D radiation pattern. Look at the 2D version if you actually want to see the numbers.

Simulation model.





Best case, vertical cross-section taken at various angles.





Worst case, vertical cross-section taken at various angles.





Simulation model.





Best case, vertical cross-section taken at various angles.





Worst case, vertical cross-section taken at various angles.



The 'best case' and 'worst case' correspond to different assumptions about what happens to signals that travel along the outside of the coax. In the 'best case' simulation, these are completely absorbed at the other end of the coax. In the 'worst case' simulation, they are completely reflected back towards the antenna. The latter case usually results in standing waves on the outside of the coax, which causes the coax itself to radiate and interfere with the radiation pattern of the antenna. This is why the radiation pattern isn't smooth anymore. The reality will be somewhere between these two extremes.

Measurements
