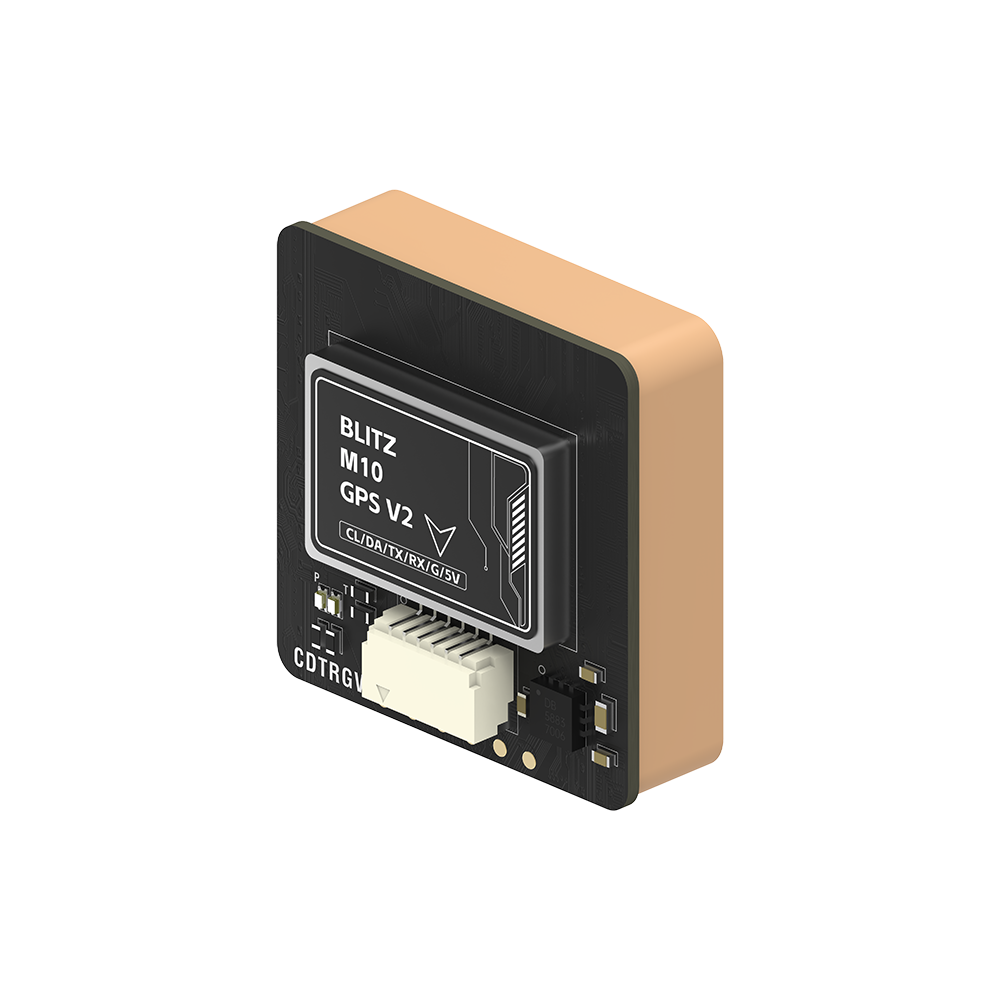

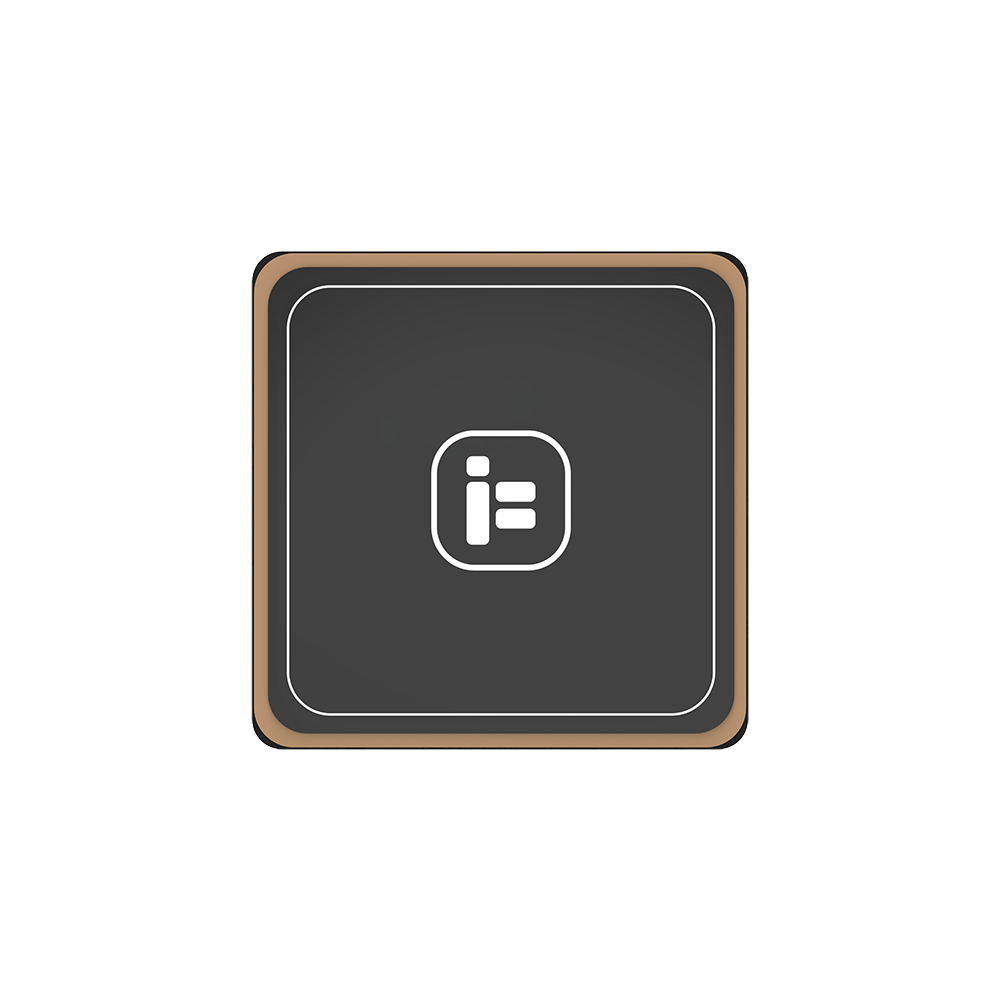

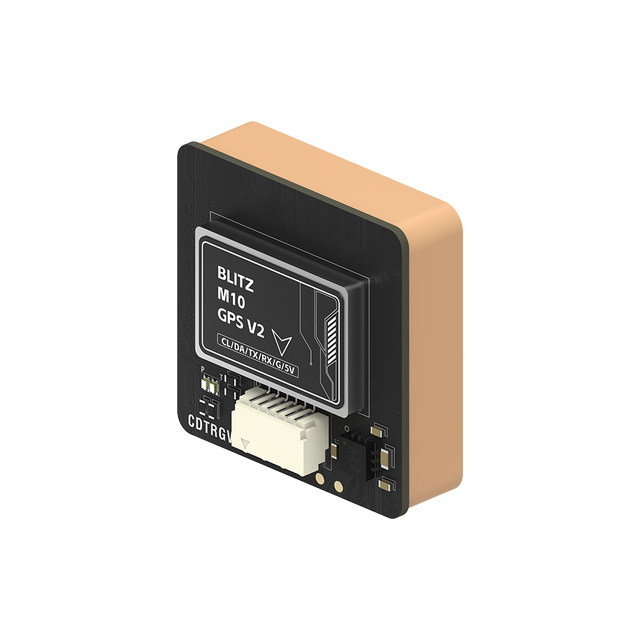

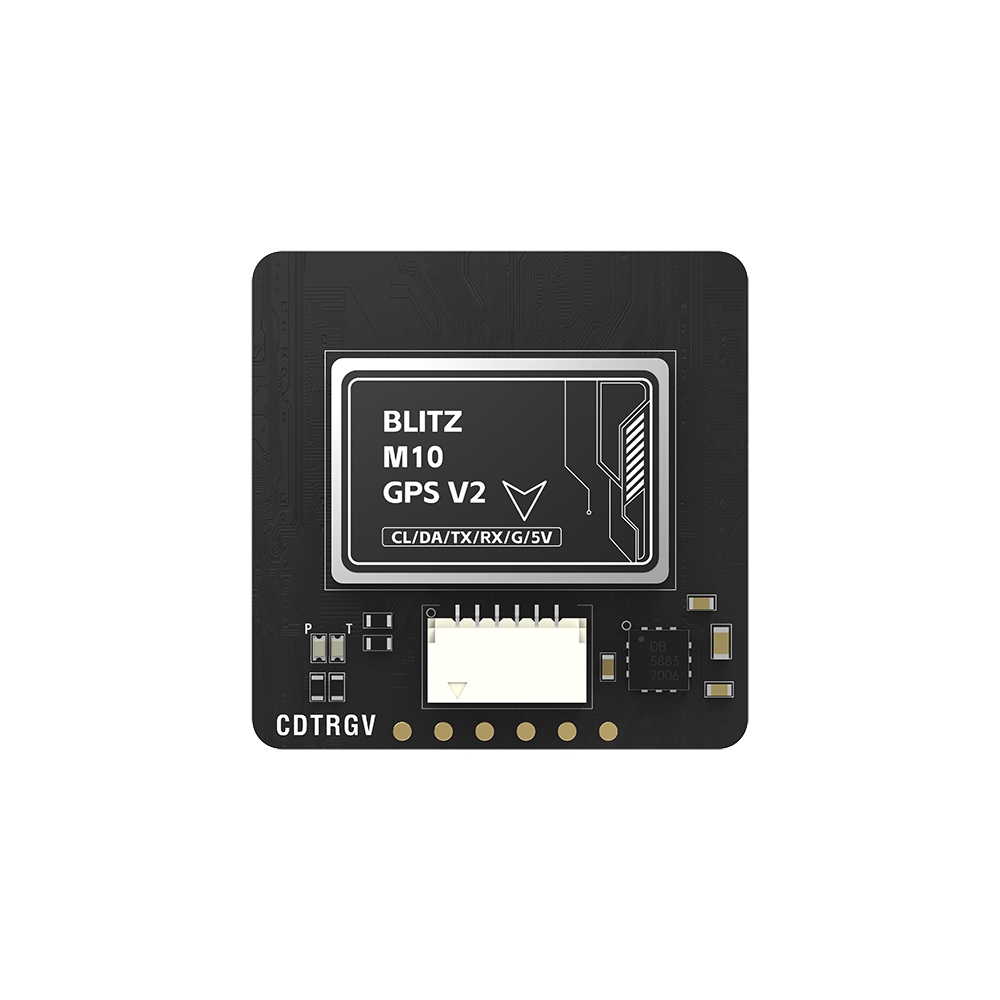

iFlight BLITZ M10 GPS V2 (25x25x6mm)
iFlight BLITZ M10 GPS V2 (25x25x6mm) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Shipping & Fufillment
Shipping & Fufillment
All items ship from our Calgary location/warehouse. For more shipping information visit our shipping policy page please note items listed as pre-order or special order will take longer to ship. Please note, couriers may differ in order to provide a quicker delivery.
iFlight BLITZ M10 GPS V2 (25x25x6mm)
Description
Description
The upgraded BLITZ M10 GPS V2 is now available, featuring enhanced satellite acquisition speed and improved stability. This technological improvement ensures a more dependable and effective GPS performance for users.
Package Includes:
1x BLITZ M10 GPS V2
1x Cable set
Features:
- UBLOX M10 chip, low power consumption, strong signal
- Compass module QMC5883L integrated
- Built-in farad capacitor for faster hot start
- High-precision positioning
- Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
- 10 Hz Refresh rate
- Built-in Flash
Specifications
Compass module: QMC5883L
Baud Rate: 9600-460800 / 4800bps-921600bps (Default - 115200bps)
Sensitivity: Tracking: -167dBm
Cold start: 27s
Hot start: 1s
Maximum height: 80000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ? 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 18.2 x 18.2 x 4 mm / 25 x 25 x 6 mm
Total dimensions: 20 x 21 x 8 mm / 25 x 25 x 11 mm
Weight: 8g / 16 g
Input Voltage: 3.3-5.5 V
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
